RM series
Universal Matching: High precision, the same cabinet can be applied to multiple point spacing models.
Seamless Design: It can be assembled to create a seamless and edge-to-edge display. This provides a polished and modern aesthetic that enhances the overall visual appeal.
Anti-slip Handles: The product features a unique embossed pattern specifically designed to enhance grip and prevent slipping, ensuring a secure and safe experience.
1. STAGE / RENTAL LED VIDEO PANELS
RM series are performance-driven high-resolution LED video wall panels designed to provide refined image detail at close viewing/shooting distances complemented by advanced color rendering. VW series panels are suitable for the most critical optical applications.
2. EASY SERVICEABILITY
Magnetic modular LED sections for easy, tool-free serviceability from the front or rear of the screen. High-stability, cable-free connections with a detachable modular power supply housing guarantee minimal downtime.
3. CREATIVE FLEXIBILITY
Optional curving & seamless 90-degree corner solutions for unified creative deployment. Cross-compatible panel sizes with hanging and ground stacking capabilities.
| Panel Name: | RM series |
| Pixel Configuration: | NationStar |
| Pixel Pitch: | 3.91mm |
| Resolution: | 128x128 |
| Pixel Density: | 65,536Pixels |
| LED Tile Quantity: | 4pcs/panel (2 x 2) |
| Material: | Die-casting Aluminum |
| Dimensions: | 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm) |
| Weight: | 14.5lbs (6.6KGS) |
| Application: | Indoor/outdoor |
| Receiving Card: | NovaStar |
| Brightness: | 1,000 nits for indoor, 4,500nits for ourdoor |
| Refresh Rate: | 3840 Hz |
| Color Depth: | 16 bit |
| Scan Mode: | 1/16 |
| Optimal Viewing Distance: | 3 ~ 26m |
| View Angle: | Horizontal 140°/ Vertical 140° |
| Input Voltage: | 100 ~ 240V AC |
| Frame Frequency: | 50/60Hz |
| Avg. Power Consumption: | 75W/Panel |
| Max. Power Consumption: | 170W/Panel |
| Maintenance Type: | Front/Rear |
| Lifespan: | 100,000 Hours |
| IP Rating: | IP43 (Front) / IP21 (Rear) |
| Warranty: | 2years |
1. STAGE / RENTAL LED VIDEO PANELS
RM series are performance-driven high-resolution LED video wall panels designed to provide refined image detail at close viewing/shooting distances complemented by advanced color rendering. VW series panels are suitable for the most critical optical applications.
2. EASY SERVICEABILITY
Magnetic modular LED sections for easy, tool-free serviceability from the front or rear of the screen. High-stability, cable-free connections with a detachable modular power supply housing guarantee minimal downtime.
3. CREATIVE FLEXIBILITY
Optional curving & seamless 90-degree corner solutions for unified creative deployment. Cross-compatible panel sizes with hanging and ground stacking capabilities.
| Panel Name: | RM series |
| Pixel Configuration: | NationStar |
| Pixel Pitch: | 3.91mm |
| Resolution: | 128x128 |
| Pixel Density: | 65,536Pixels |
| LED Tile Quantity: | 4pcs/panel (2 x 2) |
| Material: | Die-casting Aluminum |
| Dimensions: | 19.69 x 19.69 x 2.83" (500 x 500 x 72 mm) |
| Weight: | 14.5lbs (6.6KGS) |
| Application: | Indoor/outdoor |
| Receiving Card: | NovaStar |
| Brightness: | 1,000 nits for indoor, 4,500nits for ourdoor |
| Refresh Rate: | 3840 Hz |
| Color Depth: | 16 bit |
| Scan Mode: | 1/16 |
| Optimal Viewing Distance: | 3 ~ 26m |
| View Angle: | Horizontal 140°/ Vertical 140° |
| Input Voltage: | 100 ~ 240V AC |
| Frame Frequency: | 50/60Hz |
| Avg. Power Consumption: | 75W/Panel |
| Max. Power Consumption: | 170W/Panel |
| Maintenance Type: | Front/Rear |
| Lifespan: | 100,000 Hours |
| IP Rating: | IP43 (Front) / IP21 (Rear) |
| Warranty: | 2years |

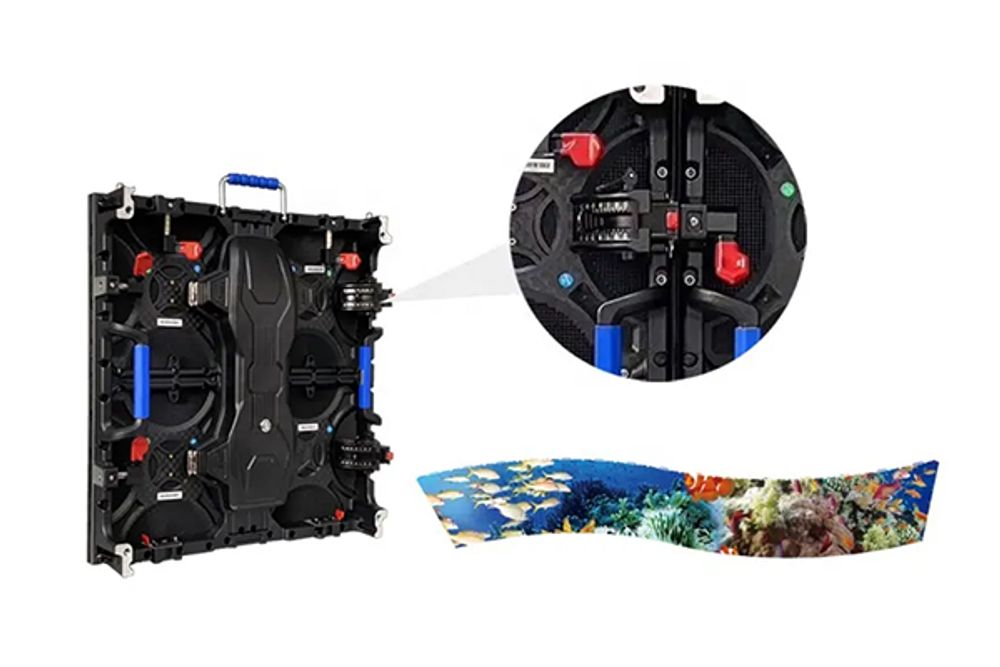

Curved Design
The curved lock serves as a critical element in creating captivating curved or cylindrical LED screen setups. It plays a pivotal role in ensuring that individual LED panels are seamlessly joined together to form a cohesive and visually impressive display.
The curved lock serves as a critical element in creating captivating curved or cylindrical LED screen setups. It plays a pivotal role in ensuring that individual LED panels are seamlessly joined together to form a cohesive and visually impressive display.

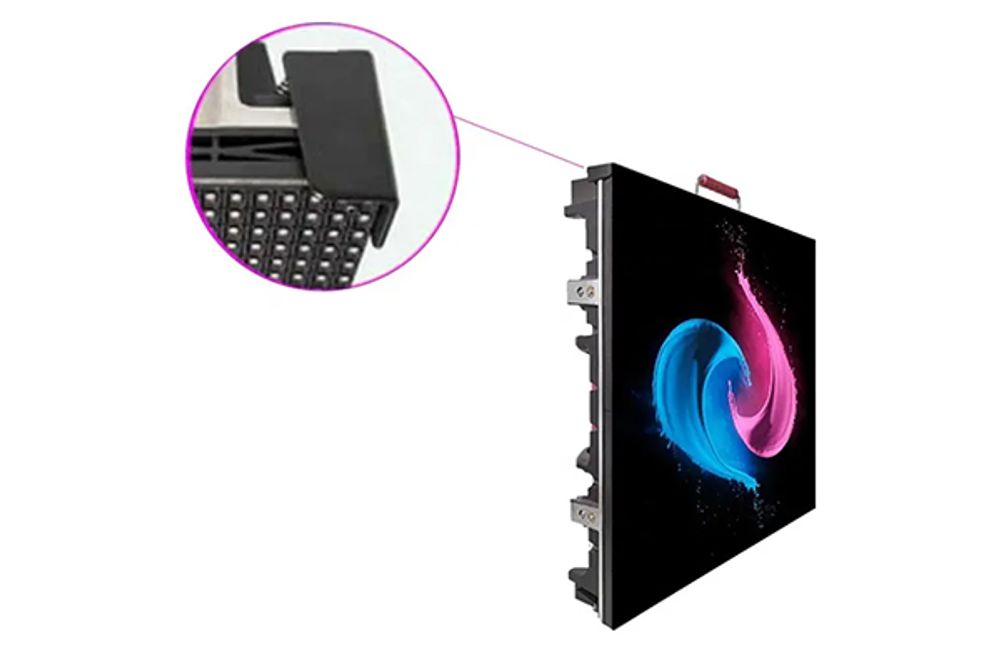

Protection Setting
Corner protectors act as a physical barrier that shields LED panels from scratches. dentsand other types of physical damage that can occur during transportation, installation, ordismantling of the display.
Corner protectors act as a physical barrier that shields LED panels from scratches. dentsand other types of physical damage that can occur during transportation, installation, ordismantling of the display.
