BWM series

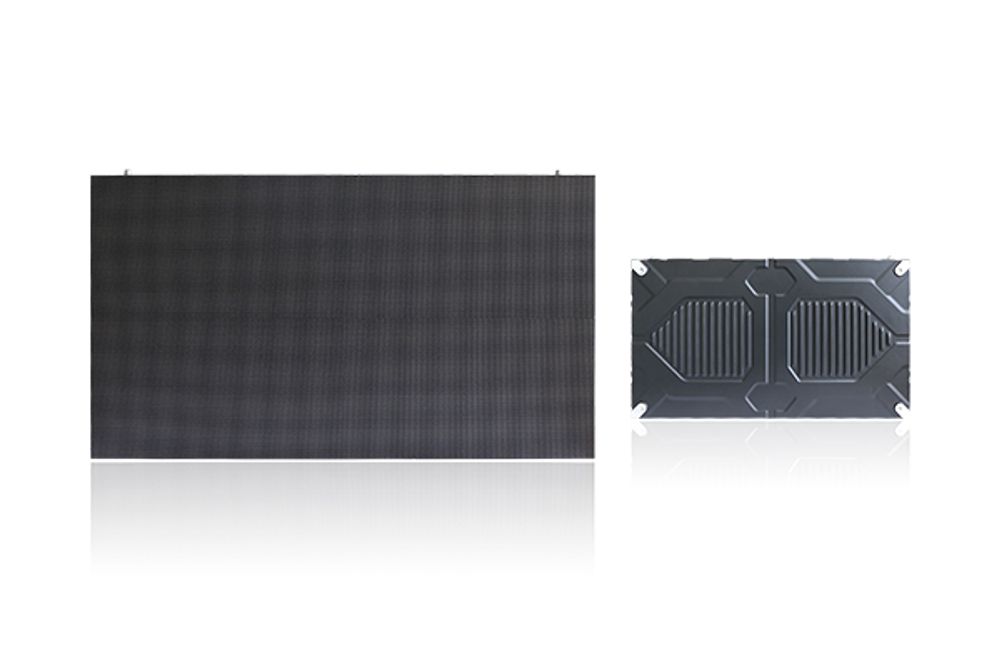

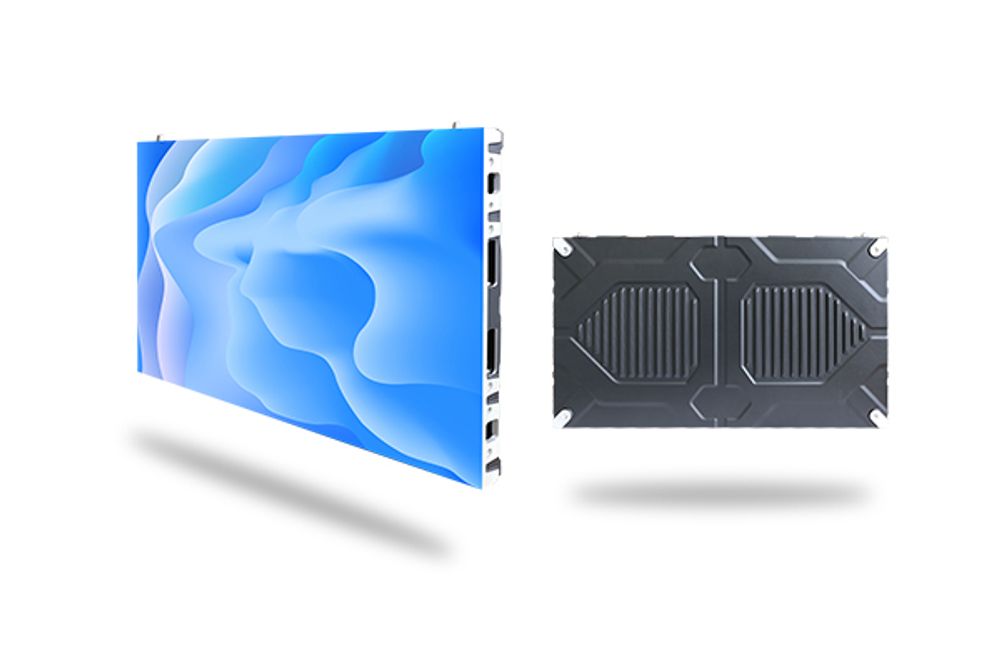

The BWM-125 is our P1.25 (600 x 337.5mm) LED video panel.It allows large-format LED screens to quickly achieve 4K, 8K and beyond resolutions in a scalable format that results in a completely seamless screen.
With a 16:9 4K resolution, BWM series LED screens deliver stunningly detailed and immersive visuals, providing a captivating viewing experience for a wide range of applications.
1. ULTRA-FINE PITCH
It offers LED screens with an ultra-fine pitch, delivering exceptional image clarity and detail for an immersive visual experience.
2. HIGH REFRESH RATE
Our LED screens feature a high refresh rate, ensuring smooth and flicker-free content playback, even during fast-paced motion.
3. PERMANENT INSTALL
It provides LED screens designed for permanent installations, guaranteeing long-lasting performance and reliability for your visual projects.
4. IMPRESSIVE VIEWING PERFORMANCE
With its high-brightness LED, the BWM series panels give an excellent visual performance for both direct viewing and in-camera visuals.
| Panel Name: | BWM series |
| Pixel Configuration: | NationStar |
| Pixel Pitch: | 1.25 |
| Resolution: | 480X270 |
| Pixel Density: | 129,600Pixels |
| LED Tile Quantity: | 4pcs/panel (2 x 2) |
| Material: | Die-casting Aluminum |
| Dimensions: | 23.62 x 13.29 x 1.93" (600 x 337.5 x 49 mm) |
| Weight: | 10 lbs (4.9 kg) |
| Application: | Indoor |
| Receiving Card: | NovaStar |
| Brightness: | 800 nits |
| Refresh Rate: | 3840hz |
| Color Depth: | 16 bit |
| Scan Mode: | 1/60 |
| Optimal Viewing Distance: | 3 ~ 39 ft (1.2 - 12.0 m) |
| View Angle: | Horizontal 160° / Vertical 160° |
| Input Voltage: | 100 ~ 240V AC |
| Frame Frequency: | 50/60Hz |
| Avg. Power Consumption: | 82W/Panel |
| Max. Power Consumption: | 180W/Panel |
| Maintenance Type: | Front |
| Lifespan: | 100,000 Hours |
| IP Rating: | IP30 |
| Warranty: | 2years |
1. ULTRA-FINE PITCH
It offers LED screens with an ultra-fine pitch, delivering exceptional image clarity and detail for an immersive visual experience.
2. HIGH REFRESH RATE
Our LED screens feature a high refresh rate, ensuring smooth and flicker-free content playback, even during fast-paced motion.
3. PERMANENT INSTALL
It provides LED screens designed for permanent installations, guaranteeing long-lasting performance and reliability for your visual projects.
4. IMPRESSIVE VIEWING PERFORMANCE
With its high-brightness LED, the BWM series panels give an excellent visual performance for both direct viewing and in-camera visuals.
| Panel Name: | BWM series |
| Pixel Configuration: | NationStar |
| Pixel Pitch: | 1.25 |
| Resolution: | 480X270 |
| Pixel Density: | 129,600Pixels |
| LED Tile Quantity: | 4pcs/panel (2 x 2) |
| Material: | Die-casting Aluminum |
| Dimensions: | 23.62 x 13.29 x 1.93" (600 x 337.5 x 49 mm) |
| Weight: | 10 lbs (4.9 kg) |
| Application: | Indoor |
| Receiving Card: | NovaStar |
| Brightness: | 800 nits |
| Refresh Rate: | 3840hz |
| Color Depth: | 16 bit |
| Scan Mode: | 1/60 |
| Optimal Viewing Distance: | 3 ~ 39 ft (1.2 - 12.0 m) |
| View Angle: | Horizontal 160° / Vertical 160° |
| Input Voltage: | 100 ~ 240V AC |
| Frame Frequency: | 50/60Hz |
| Avg. Power Consumption: | 82W/Panel |
| Max. Power Consumption: | 180W/Panel |
| Maintenance Type: | Front |
| Lifespan: | 100,000 Hours |
| IP Rating: | IP30 |
| Warranty: | 2years |
BWM SERIES LED VIDEO PANEL
BWM panels feature a high refresh rate and crisp contrast and deliver more brightness with less heat – consuming less power for more cost savings vs traditional video projectors.
BWM panels feature a high refresh rate and crisp contrast and deliver more brightness with less heat – consuming less power for more cost savings vs traditional video projectors.
SMOOTH VIEW
True 16:9 aspect ratio HD video quality & precisely matched SMD LEDs offer exceptional color reproduction and gamut to reach everyone in your venue.
True 16:9 aspect ratio HD video quality & precisely matched SMD LEDs offer exceptional color reproduction and gamut to reach everyone in your venue.
