EM series

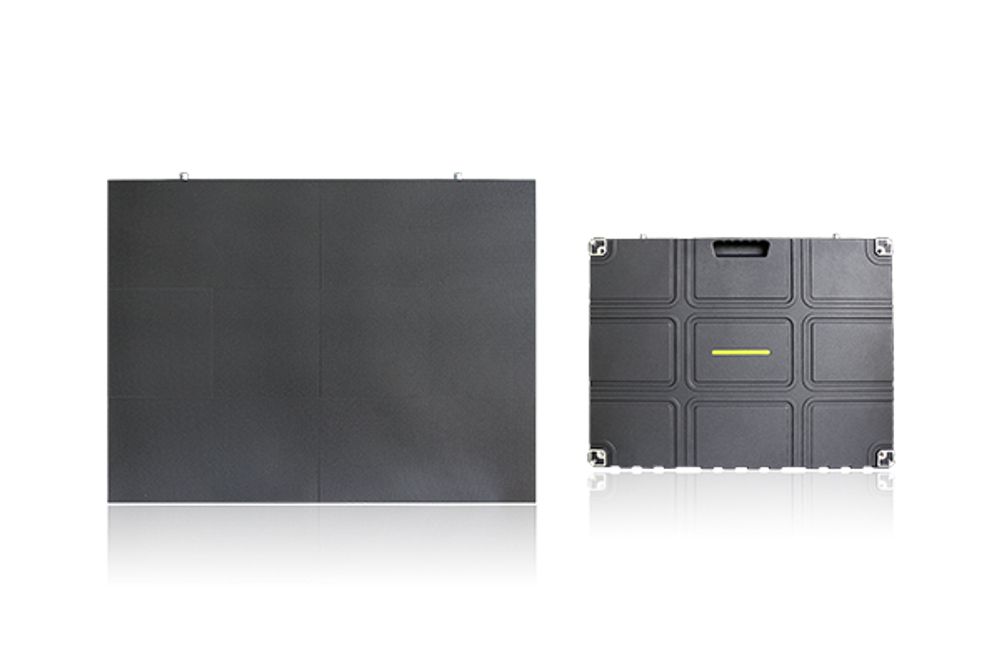

EM series panels are our 640 x 480 mm LED video panels to meet the market's most basic 4:3 ratio. These panels can captivate a large audience, ensuring no details of your message or advertisement are missed.
With creative flexibility, the panels can be cut to 320 x 480 mm or 640 x 320 mm to meet individual size requirements.

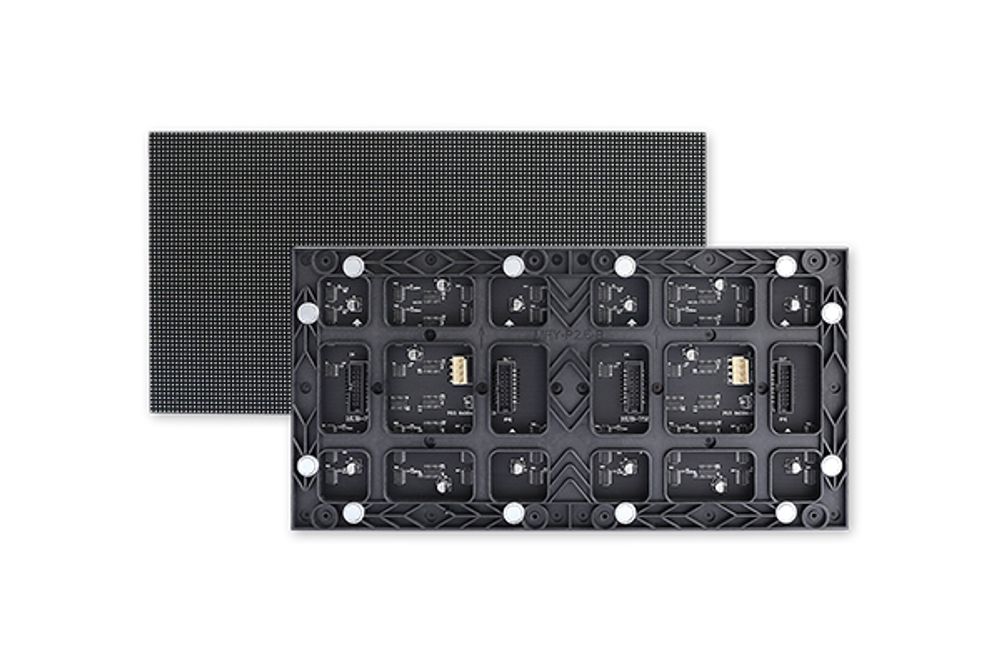

1. EASY MAINTENANCE
Magnetic LED modular sections for easy, tool-freeserviceability from the front of the screen.
2. LOW LATENCY
High-refresh rates and scan rates for fluid image movements and high input frame rate support.
3. ULTRA LOW-PROFILE
EM series LED screens feature an ultra low-profile design, ensuring a sleek and unobtrusive installation. With a slim form factor, they seamlessly blend into any environment, making them perfect for applications where space is limited or aesthetics are a priority, such as retail displays, museums, or corporate settings.
| Panel Name: | EM series |
| Pixel Configuration: | NationStar |
| Pixel Pitch: | 2.5mm |
| Resolution: | 256 x 192 mm |
| Pixel Density: | 160,000 Pixels/㎡ |
| LED Tile Quantity: | 6 pcs/panel (2 x 3) |
| Material: | Die-casting Aluminum |
| Dimensions: | 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm) |
| Weight: | 15.43 lbs (7.0 kg) |
| Application: | Indoor / Fine Pixel Pitch |
| Receiving Card: | NovaStar |
| Brightness: | 1,000 nits |
| Refresh Rate: | ≥3840hz |
| Color Depth: | 16 bit |
| Scan Mode: | 1/32 |
| Optimal Viewing Distance: | 8 ~ 82 ft (2.5 ~ 25.0 m) |
| View Angle: | Horizontal 140°/ Vertical 140° |
| Input Voltage: | 100 ~ 240V AC |
| Frame Frequency: | 50/60Hz |
| Avg. Power Consumption: | 100 W/Panel |
| Max. Power Consumption: | 200 W/Panel |
| Maintenance Type: | Front |
| Lifespan: | 100,000 Hours |
| IP Rating: | IP43 |
| Warranty: | 2years |
1. EASY MAINTENANCE
Magnetic LED modular sections for easy, tool-freeserviceability from the front of the screen.
2. LOW LATENCY
High-refresh rates and scan rates for fluid image movements and high input frame rate support.
3. ULTRA LOW-PROFILE
EM series LED screens feature an ultra low-profile design, ensuring a sleek and unobtrusive installation. With a slim form factor, they seamlessly blend into any environment, making them perfect for applications where space is limited or aesthetics are a priority, such as retail displays, museums, or corporate settings.
| Panel Name: | EM series |
| Pixel Configuration: | NationStar |
| Pixel Pitch: | 2.5mm |
| Resolution: | 256 x 192 mm |
| Pixel Density: | 160,000 Pixels/㎡ |
| LED Tile Quantity: | 6 pcs/panel (2 x 3) |
| Material: | Die-casting Aluminum |
| Dimensions: | 25.20 x 18.90 x 2.36" (640 x 480 x 60 mm) |
| Weight: | 15.43 lbs (7.0 kg) |
| Application: | Indoor / Fine Pixel Pitch |
| Receiving Card: | NovaStar |
| Brightness: | 1,000 nits |
| Refresh Rate: | ≥3840hz |
| Color Depth: | 16 bit |
| Scan Mode: | 1/32 |
| Optimal Viewing Distance: | 8 ~ 82 ft (2.5 ~ 25.0 m) |
| View Angle: | Horizontal 140°/ Vertical 140° |
| Input Voltage: | 100 ~ 240V AC |
| Frame Frequency: | 50/60Hz |
| Avg. Power Consumption: | 100 W/Panel |
| Max. Power Consumption: | 200 W/Panel |
| Maintenance Type: | Front |
| Lifespan: | 100,000 Hours |
| IP Rating: | IP43 |
| Warranty: | 2years |
FLEXIBLE SCALABILITY
Our LED screens offer flexible scalability, allowing for easy expansion and customization of display sizes. Whether you need a small screen for intimate settings or a large video wall for immersive experiences, our screens can be seamlessly combined and configured to meet your specific requirements. This feature makes them ideal for dynamic environments that require versatile and scalable visual solutions, such as event venues, conference centers, and control rooms.
Our LED screens offer flexible scalability, allowing for easy expansion and customization of display sizes. Whether you need a small screen for intimate settings or a large video wall for immersive experiences, our screens can be seamlessly combined and configured to meet your specific requirements. This feature makes them ideal for dynamic environments that require versatile and scalable visual solutions, such as event venues, conference centers, and control rooms.
EASY INSTALLATION & SERVICEABILITY
Derived from the concept of a flat panel, the backside reduces the exposed redundancy of wires and realizes the flat panel installation before complete front maintenance; It is less destructive to the original wall and saves space.
The independent packaging of the module and the panel effectively reduces the bumping limitation of developing to a smaller spacing and satisfies the possibility of a smaller area and a denser display.
Derived from the concept of a flat panel, the backside reduces the exposed redundancy of wires and realizes the flat panel installation before complete front maintenance; It is less destructive to the original wall and saves space.
The independent packaging of the module and the panel effectively reduces the bumping limitation of developing to a smaller spacing and satisfies the possibility of a smaller area and a denser display.
